Basics
In this notebook we demonstrate building a simple Kennedy & O'Hagan model.
The user is required to provide two structures:
- A class which inherits from
KOHModeland defines the GP kernel structures, - A dictionary of prior definitions for each model parameter.
We also run through an example by loading a dataset and calculating the negative log posterior density (NLPD) using the parameter prior means.
import gpjax as gpx
import jax.numpy as jnp
import numpy as np
from jax import config
config.update("jax_enable_x64", True)
#
# ## Step 1: Define the model
#
# Defining both `k_eta` and `k_delta` is required.
# Defining `k_epsilon_eta` is completely optional - default behaviour sets variance to 0 effectively turning off this kernel.
# Defining `k_epsilon` here is also optional. A white noise kernel is used by default but a prior definition must always be provided by the user. The kernel will search for the variance parameter prior under ['epsilon', 'variances', 'variance'] of the prior dictionary by default.
#
# In this example variances are defined as the inverse of a precision parameter.
# This is inkeeping with Higdon et al. (2004).
from kohgpjax.kohmodel import KOHModel
class OurModel(KOHModel):
def k_eta(self, params_constrained) -> gpx.kernels.AbstractKernel:
params = params_constrained["eta"]
return gpx.kernels.ProductKernel(
kernels=[
gpx.kernels.RBF(
active_dims=[0],
lengthscale=jnp.array(params["lengthscales"]["x_0"]),
variance=jnp.array(1 / params["variances"]["precision"]),
),
gpx.kernels.RBF(
active_dims=[1],
lengthscale=jnp.array(params["lengthscales"]["theta_0"]),
# variance=1.0, # This is not required as the variance is set to 1 by default
),
]
)
def k_delta(self, params_constrained) -> gpx.kernels.AbstractKernel:
params = params_constrained["delta"]
return gpx.kernels.RBF(
active_dims=[0],
lengthscale=jnp.array(params["lengthscales"]["x_0"]),
variance=jnp.array(1 / params["variances"]["precision"]),
)
def k_epsilon(self, params_constrained) -> gpx.kernels.AbstractKernel:
params = params_constrained["epsilon"]
return gpx.kernels.White(
active_dims=[0],
variance=jnp.array(1 / params["variances"]["precision"]),
)
# def k_epsilon_eta(self, params_constrained) -> gpx.kernels.AbstractKernel:
# params = params_constrained["epsilon_eta"]
# return gpx.kernels.White(
# active_dims=[1],
# variance=jnp.array(1 / params["variances"]["precision"]),
# )
Step 2: Define the priors
import numpyro.distributions as dist
from kohgpjax.parameters import ModelParameterPriorDict, ParameterPrior
prior_dict: ModelParameterPriorDict = {
"thetas": {
"theta_0": ParameterPrior(
dist.Uniform(low=0.3, high=0.5),
name="theta_0",
),
},
"eta": {
"variances": {
"precision": ParameterPrior(
dist.Gamma(concentration=2.0, rate=4.0),
name="eta_precision",
),
},
"lengthscales": {
"x_0": ParameterPrior(
dist.Gamma(concentration=4.0, rate=1.4),
name="eta_lengthscale_x_0",
),
"theta_0": ParameterPrior(
dist.Gamma(concentration=2.0, rate=3.5),
name="eta_lengthscale_theta_0",
),
},
},
"delta": {
"variances": {
"precision": ParameterPrior(
dist.Gamma(concentration=2.0, rate=0.1),
name="delta_precision",
),
},
"lengthscales": {
"x_0": ParameterPrior(
dist.Gamma(concentration=4.0, rate=2.0),
name="delta_lengthscale_x_0",
)
},
},
"epsilon": {
"variances": {
"precision": ParameterPrior(
dist.Gamma(concentration=12.0, rate=0.025),
name="epsilon_precision",
),
},
},
# 'epsilon_eta': {
# 'variances': {
# 'precision': ParameterPrior(
# dist.Gamma(concentration=10.0, rate=0.001),
# name='epsilon_eta_precision',
# ),
# },
# },
}
Step 3: Load the example dataset
from kohgpjax.dataset import KOHDataset
DATAFIELD = np.loadtxt('data/field.csv', delimiter=',', dtype=np.float32)
DATASIM = np.loadtxt('data/sim.csv', delimiter=',', dtype=np.float32)
xf = jnp.reshape(DATAFIELD[:, 0], (-1, 1)).astype(jnp.float64)
xc = jnp.reshape(DATASIM[:, 0], (-1, 1)).astype(jnp.float64)
tc = jnp.reshape(DATASIM[:, 1], (-1, 1)).astype(jnp.float64)
yf = jnp.reshape(DATAFIELD[:, 1], (-1, 1)).astype(jnp.float64)
yc = jnp.reshape(DATASIM[:, 2], (-1, 1)).astype(jnp.float64)
field_dataset = gpx.Dataset(xf, yf)
sim_dataset = gpx.Dataset(jnp.hstack((xc, tc)), yc)
kohdataset = KOHDataset(field_dataset, sim_dataset)
print(kohdataset)
KOHDataset(
Datasets:
Field data = Dataset(Number of observations: 100 - Input dimension: 1),
Simulation data = Dataset(Number of observations: 500 - Input dimension: 2)
Attributes:
No. field observations = 100,
No. simulation outputs = 500,
No. variable params = 1,
No. calibration params = 1,
)

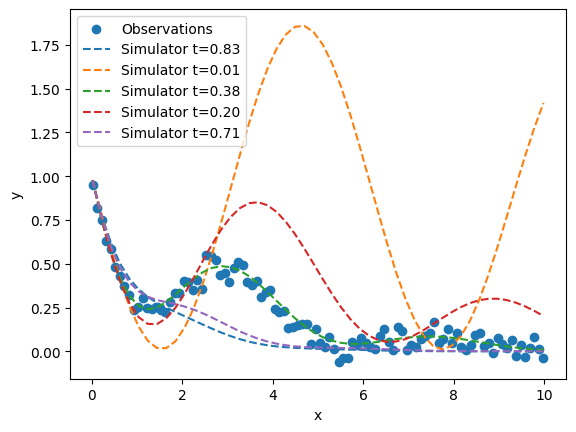

import matplotlib.pyplot as plt
fig, ax = plt.subplots(1, 1)
ax.scatter(xf, yf, label='Observations')
rng = np.random.default_rng()
ts = rng.permutation(np.unique(tc))[:5]
for t in ts:
rows = tc==t
ax.plot(xc[rows], yc[rows], '--', label=f'Simulator t={t:.2f}')
ax.set_xlabel('x')
ax.set_ylabel('y')
ax.legend()
plt.show()
Step 4: Calculate the NLPD
We now build a ModelParameters object using the prior dictionary defined above and pass it to the OurModel class along with the KOHDataset object.
from jax import grad, jit
from kohgpjax.parameters import ModelParameters
model_parameters = ModelParameters(prior_dict=prior_dict)
our_model = OurModel(
kohdataset=kohdataset,
model_parameters=model_parameters,
)
nlpd_func = our_model.get_KOH_neg_log_pos_dens_func()
# JIT-compile the NLPD function
nlpd_jitted = jit(nlpd_func)
# Compute the gradient of the NLPD
grad_nlpd_jitted = jit(grad(nlpd_func))
# Calculate the negative log posterior density using the prior means
from jax import tree as jax_tree
prior_leaves, prior_tree = jax_tree.flatten(prior_dict)
prior_means = jax_tree.map(
lambda x: x.inverse(x.distribution.mean), prior_leaves
)
init_states = np.array(prior_means) # NOT jnp.array
print("Initial states:", init_states)
nlpd_value = nlpd_jitted(init_states)
print("Negative log posterior density:", nlpd_value)
grad_nlpd_value = grad_nlpd_jitted(init_states)
print("Gradient of NLPD:", grad_nlpd_value)
Initial states: [ 6.93147181e-01 2.99573227e+00 6.17378610e+00 -5.59615788e-01
1.04982212e+00 -6.93147181e-01 4.44089210e-16]
Negative log posterior density: 18302.367816505932
Gradient of NLPD: [-7.15381155e+00 -3.35597841e+00 -5.39850702e+00 8.74188396e+04
1.09173526e+05 1.12665347e+04 6.12961026e-01]
Step 5: Implement an MCMC sampler
We can now implement an MCMC algorithm to sample from the posterior distribution. I recommend Mici for python-based MCMC sampling or BlackJAX for JAX-based MCMC sampling. Also see STAN and PyMC for other options.
